The MECS:

  • Is the first patented system in our technology portfolio.
  • Is scalable from 10 to over 3000 tons.
  • Has NO compressors and uses NO refrigerants.
  • Has a water cooling system that can deliver cold water and cold air to 8 °C below ambient air wet bulb temperature (depending on geographical location).
  • System first costs are within ±20% of traditional mechanical refrigeration systems.
  • Provides 40 to 60 percent energy savings compared to traditional mechanical refrigeration systems and a corresponding 40 to 60 percent reduction in greenhouse gas emissions from power plants through the energy reduction.
  • Provides 100 percent cooled or heated fresh air (100 percent air exchange) in commercial buildings, hospital and medical facilities, industrial buildings, warehouse facilities, casinos and hotels, and other large building spaces.
  • Provides process cooling water for manufacturing, food and beverage, and oil, gas, and chemical processing industries.
  • Is equipped with appropriate real time monitoring and control system compatible with existing customer’s system.
  • Integrates with existing Energy Management Systems and Manufacturing Energy Management Systems.

Energy Efficient Cooling Systems Target Markets

  • Commercial, Industrial, and Warehouse Buildings – Intelligent … Smart Buildings
  • Hospitals and Medical Facilities – Intelligent … Smart Buildings
  • Data Centers – Intelligent … Smart Buildings; the MECS provides energy efficient data center cooling.
  • Turbine Inlet Cooling (TIC) (natural gas combustion turbines); cold inlet air increases turbine efficiency by 5 to 30 percent.
  • Compressed Air Systems Inlet Air Cooling (compressed air systems); cold inlet air increases compressor efficiency by 5 to 30 percent.
  • Casino and Hospitality Buildings and Spaces
  • Semi-conductor Manufacturing Facilities
  • Large and Small Scale Manufacturing Process Cooling
  • Food and Beverage Processing Plants
  • Industrial Manufacturing or Processing Plants (Plastics, Chemicals, Gases, etc.)

R4 Ventures LLC

White Paper

Preliminary Temperature Performance Evaluation of New Cooling Technologies consisting of the Multistage Evaporative Cooling System (MECS) alone or combined with the Real Time Electronic Enclosure Cooling System (ISECS) in the  Real Time Data Center Cooling System (RTDCCS) for Phoenix, AZ; San Jose, CA; and Washington DC.

Click here to view – (White Paper – Preliminary Temp Performance Evaluation MECS and RTDCCS 6-25-18)

  • Data Centers – Real Time Data Center Cooling System (MECS + ISECS)
  • Commercial/Industrial Buildings – MECS
  • Inlet Air Cooling for Nat Gas Turbines/CHP Systems – MECS
  • Process Cooling Water for Industrial & Food Processing Plants – MECS

Summary of MECS performance as detailed in the White Paper for three major cities: Phoenix AZ; San Jose CA; and Washington DC

Commercial/Industrial Buildings – MECS (See charts below)

  1. Phoenix AZ
    • ASHRAE published Summer Design Conditions of .4% for evaporative applications – Commercial and Industrial Building cold supply air temperatures provided to the entire space to be cooled can be maintained at a set point temperature of 73.39 °F (includes sensible and adiabatic cooled air exiting the MU AHU) plus adjustment for space heat gain. No compressors and refrigerants are used in the system. Significant additional energy can be saved by maintaining a cold supply air set point temperature of 74°F in the Commercial and Industrial Building.
    • Based on the Monthly Mean Dry Bulb and Wet Bulb Temperatures – Commercial and Industrial Building cold supply air temperatures provided to the entire space to be cooled can be maintained at a set point temperature of 70.27 °F (includes sensible cooled air only exiting the MU AHU) in the hottest month of August plus adjustment for space heat gain. No compressors and refrigerants are used in the system. Significant additional energy can be saved by maintaining a cold supply air set point temperature of 74 °F in the Commercial and Industrial Building.
    • The additional 4 °F to 10 °F set point temperature reduction is obtained by adding an adiabatic cooling section to the Make Up Air Handling Unit (MU AHU).
  2. San Jose CA
    • ASHRAE published Summer Design Conditions of .4% for evaporative applications – Commercial and Industrial Building cold supply air temperatures provided to the entire space to be cooled can be maintained at a set point temperature of 70.22 °F (includes sensible cooled air only exiting the MU AHU) plus adjustment for space heat gain. No compressors and refrigerants are used in the system. Significant additional energy can be saved by maintaining a cold supply air set point temperature of 74 °F in the Commercial and Industrial Building.
    • Based on the Monthly Mean Dry Bulb and Wet Bulb Temperatures – Commercial and Industrial Building cold supply air temperatures provided to the entire space to be cooled can be maintained at a set point temperature of 68.03 °F (includes sensible cooled air only exiting the MU AHU) in the hottest month of July plus adjustment for space heat gain. No compressors and refrigerants are used in the system. Significant additional energy can be saved by maintaining a cold supply air set point temperature of 74 °F in the Commercial and Industrial Building.
    • The additional 4 °F to 10 °F set point temperature reduction is obtained by adding an adiabatic cooling section to the Make Up Air Handling Unit (MU AHU).
  3. Washington DC
    • ASHRAE published Summer Design Conditions of .4% for evaporative applications – Commercial and Industrial Building cold supply air temperatures provided to the entire space to be cooled can be maintained at a set point temperature of 79.65 °F (includes sensible and adiabatic cooled air exiting the MU AHU) plus adjustment for space heat gain. No compressors and refrigerants are used in the system. For approximately X hours a year, the system would operate about 5.65 °F above a set point temperature of 74 °F. The balance of the year or approximately Y hours per year is well under the 74 °F threshold.
    • Based on the Monthly Mean Dry Bulb and Wet Bulb Temperatures – Commercial and Industrial Building cold supply air temperatures provided to the entire space to be cooled can be maintained at a set point temperature of 73.07 °F (includes sensible and adiabatic cooled air exiting the MU AHU) in the hottest month of July plus adjustment for space heat gain. No compressors and refrigerants are used in the system. Significant additional energy can be saved by maintaining a cold supply air set point temperature of 74 °F in the Commercial and Industrial Building.
    • Significant energy can be saved by maintaining a cold supply air set point temperature of 74 °F in the Commercial and Industrial Building when using dehumidification in Make Up Air Handling Unit (MU AHU).

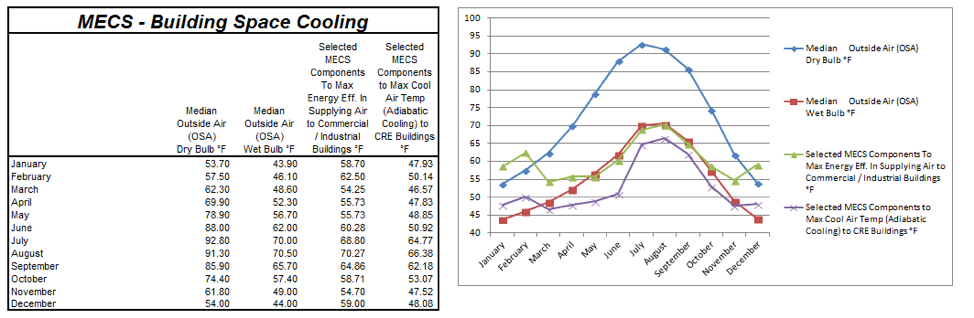

Phoenix AZ

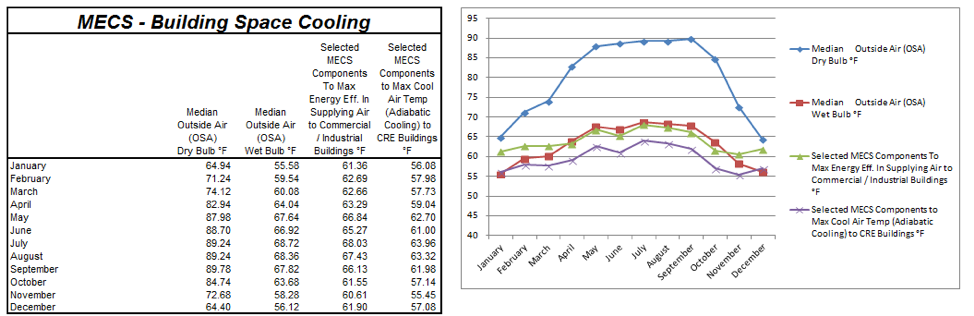

San Jose CA

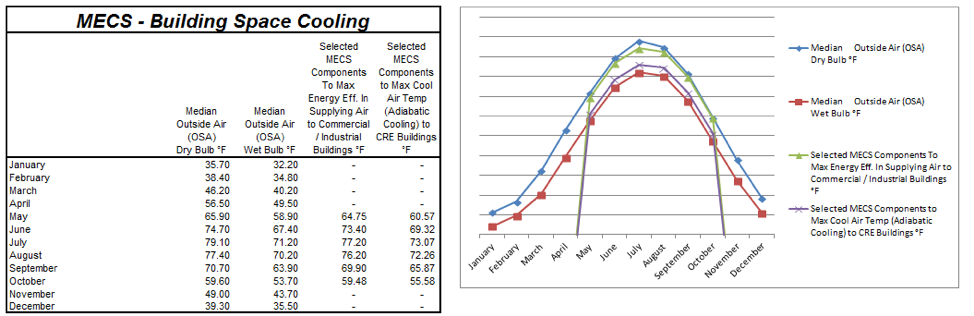

Washington DC



Process Cooling Water for Industrial & Food Processing Plants – MECS (Colder Water Temperatures can be achieved by consulting with R4 Ventures LLC on the specific application and client needs) (See charts below)

  1. Phoenix AZ
    • ASHRAE published Summer Design Conditions of .4% for evaporative applications – For Process Cooling Water for Industrial & Food Processing Plants, cold supply water temperatures provided to the process cooling application can be maintained at a water temperature of 73.95 °F. No compressors and refrigerants are used in the system. To reach of the desired application water temperature, additional trimming water temperature would be accomplished through a addition of a Supplemental Cooling Module (SCM) providing any other source of cold water, i.e. water from a small adsorption or absorption chiller; water from a lake, river, or ocean; ground water / geothermal, etc.
    • Based on the Monthly Mean Dry Bulb and Wet Bulb Temperatures – For Process Cooling Water for Industrial & Food Processing Plants, cold supply water temperatures provided to the process cooling application can be maintained at a water temperature of 67.27 °F in the hottest month of August. No compressors and refrigerants are used in the system. To reach of the desired application water temperature, additional trimming water temperature would be accomplished through a addition of a Supplemental Cooling Module (SCM) providing any other source of cold water, i.e. water from a small adsorption or absorption chiller; water from a lake, river, or ocean; ground water / geothermal, etc.
  2. San Jose CA
    • ASHRAE published Summer Design Conditions of .4% for evaporative applications – For Process Cooling Water for Industrial & Food Processing Plants, cold supply water temperatures provided to the process cooling application can be maintained at a water temperature of 67.22 °F. No compressors and refrigerants are used in the system. To reach of the desired application water temperature, additional trimming water temperature would be accomplished through a addition of a Supplemental Cooling Module (SCM) providing any other source of cold water, i.e. water from a small adsorption or absorption chiller; water from a lake, river, or ocean; ground water / geothermal, etc.
    • Based on the Monthly Mean Dry Bulb and Wet Bulb Temperatures – For Process Cooling Water for Industrial & Food Processing Plants, cold supply water temperatures provided to the process cooling application can be maintained at a water temperature of 65.03 °F in the hottest month of July. No compressors and refrigerants are used in the system. To reach of the desired application water temperature, additional trimming water temperature would be accomplished through a addition of a Supplemental Cooling Module (SCM) providing any other source of cold water, i.e. water from a small adsorption or absorption chiller; water from a lake, river, or ocean; ground water / geothermal, etc.
  3. Washington DC
    • ASHRAE published Summer Design Conditions of .4% for evaporative applications – For Process Cooling Water for Industrial & Food Processing Plants, cold supply water temperatures provided to the process cooling application can be maintained at a water temperature of 79.87 °F. No compressors and refrigerants are used in the system. To reach of the desired application water temperature, additional trimming water temperature would be accomplished through a addition of a Supplemental Cooling Module (SCM) providing any other source of cold water, i.e. water from a small adsorption or absorption chiller; water from a lake, river, or ocean; ground water / geothermal, etc.
    • Based on the Monthly Mean Dry Bulb and Wet Bulb Temperatures – For Process Cooling Water for Industrial & Food Processing Plants, cold supply water temperatures provided to the process cooling application can be maintained at a water temperature of 74.20 °F in the hottest month of July. No compressors and refrigerants are used in the system. To reach of the desired application water temperature, additional trimming water temperature would be accomplished through a addition of a Supplemental Cooling Module (SCM) providing any other source of cold water, i.e. water from a small adsorption or absorption chiller; water from a lake, river, or ocean; ground water / geothermal, etc.

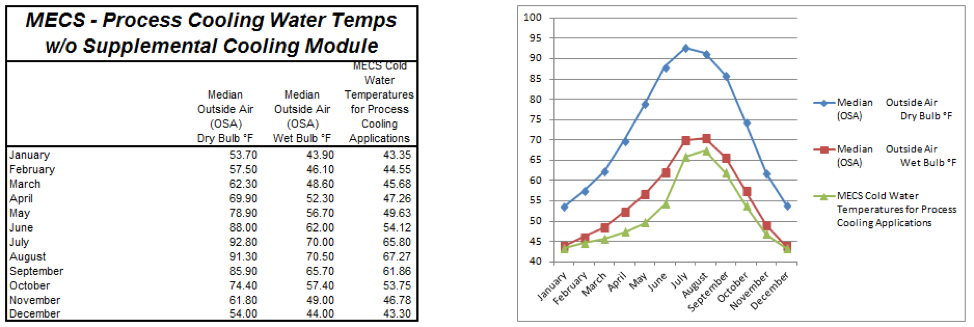

Phoenix AZ

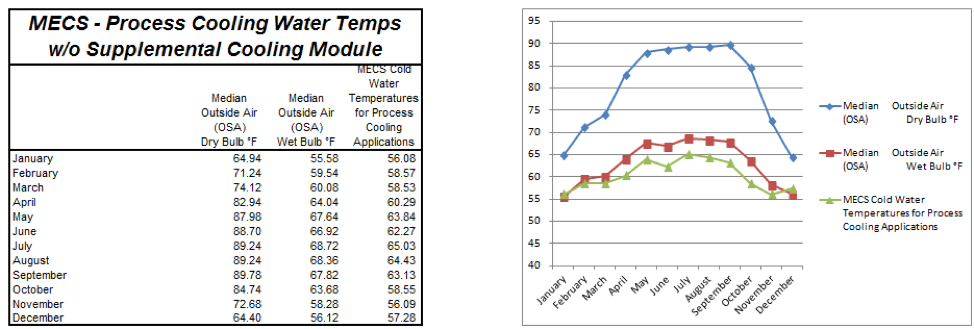

San Jose CA

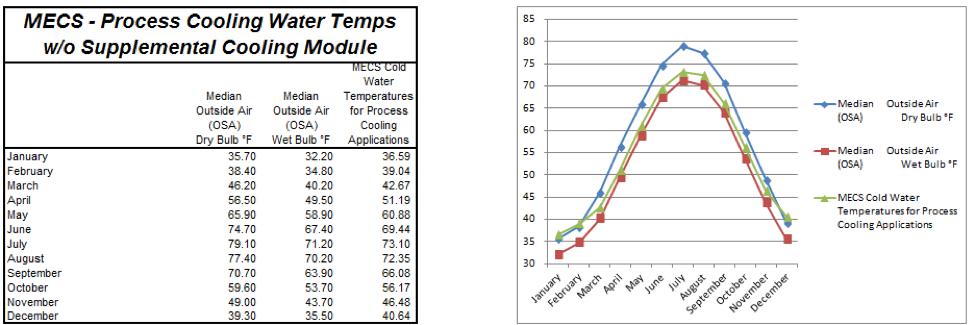

Washington DC
